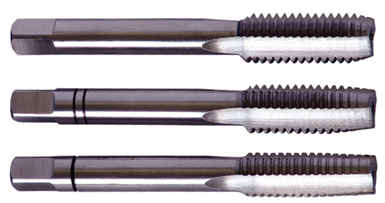

DIN351 Hand Tap

DIN351 Hand Tap


1. DIN351 / BSW 3pcs
 Size Overall Length / mm  Thread Length / mm
1/16"-60BSW 32 10
3/32"-48BSW 36 11
1/8"-40BSW 40 12
5/32"-32BSW 45 14
3/16"-24BSW 50 18
7/32"-24BSW 50 18
1/4"-20BSW 56 22
5/16"-18BSW 63 25
3/8"-16BSW 70 28
7/16"-14BSW 75 30
1/2"-12BSW 80 32
9/16"-12BSW 80 32
5/8"-11BSW 90 36
3/4"-10BSW 105 40
7/8"-9BSW 110 45
1"-8BSW 110 50
1-1/8"-7BSW 132 56
1-1/4"-7BSW 132 56
1-3/8"-6BSW 150 63
1-1/2"-6BSW 150 63
1-5/8"-5BSW 160 70
1-3/4"-5BSW 160 70
1-7/8"-4-1/2"BSW 190 80
2"-4-1/2"BSW 190 80
2. DIN351 / UNF 3pcs
 Size Overall Length / mm  Thread Length / mm
No.1-64UNC 32 10
No.2-56UNC 36 11
No.3-48UNC 36 11
No.4-40UNC 40 12
No.5-40UNC 40 12
No.6-32UNC 45 14
No.8-32UNC 45 14
No.10-24UNC 48 16
No.12-24UNC 50 18
1/4"-20UNC 56 22
5/16"-18UNC 63 25
3/8"-16UNC 70 28
7/16"-14UNC 75 30
1/2"-13UNC 80 32
9/16"-12UNC 80 32
5/8"-11UNC 90 36
3/4"-10UNC 105 40
7/8"-9UNC 110 45
1"-8UNC 110 50
1-1/8"-7UNC 132 56
1-1/4"-7UNC 132 56
1-3/8"-6UNC 150 63
1-1/2"-6UNC 150 63
1-3/4"-5UNC 160 70
2"-4-1/2"UNC 190 80

3. DIN351 / UNF  2pcs
 Size Overall Length / mm  Thread Length / mm
No.0-80UNF 28 8
No.1-72UNF 32 10
No.2-64UNF 32 10
No.3-56UNF 32 10
No.4-48UNF 26 11
No.5-44UNF 40 12
No.6-40UNF 40 12
No.8-36UNF 40 12
No.10-32UNF 45 14
No.12-28UNF 50 16
1/4"-28UNF 56 18
5/16"-24UNF 56 18
3/8"-24UNF 63 18
7/16"-20UNF 63 18
1/2"-20UNF 63 20
9/16"-18UNF 70 20
5/8"-18UNF 70 20
3/4"-16UNF 80 22
7/8"-14UNF 80 22
1"-14UNF 90 22
1"-12UNF 90 22
1-1/8"-12UNF 100 28
1-1/4"-12UNF 100 28
1-3/8"-12UNF 110 32
1-1/2"-12UNF 110 32
